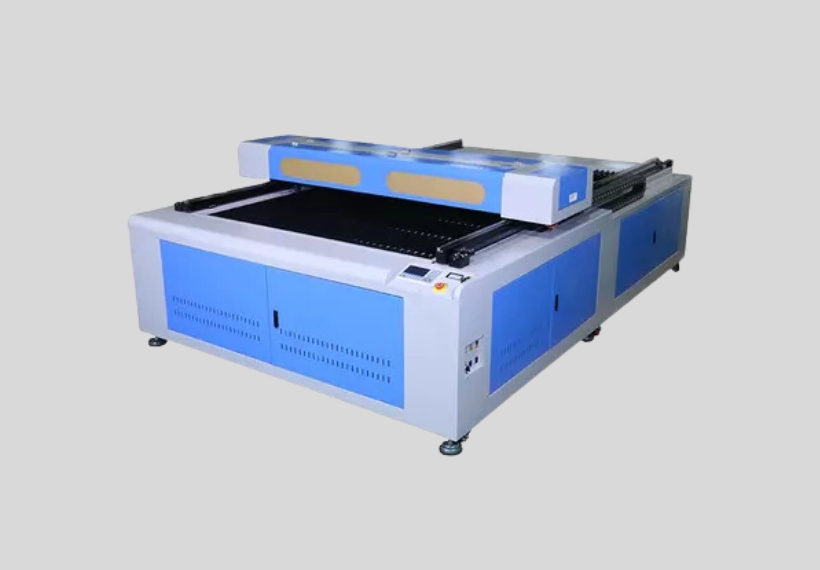

G3-1325/G3-1525/G3-1490/G3-1610 Metal/non-metal Laser Mixed Cutting
Processing Area: 1300*2500mm, 1400*900mm, 1500*2500mm, 1600*1000mm Power: 180W/200W/250W/300W/350W Color: Blue-White Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles, ABS double color sheet. Stainless steel, carbon steel.
Advantages:
1. 64DSP high-speed processor.
2. Windows USB / U disk port supported.
3. Large offline storage.
4. Simple regulation of laser power.
5. Exquisite circuit design.
6. True color screen and AWC708C latest control system.
7. Laser tube is produced by our own factory.
Technical Parameters:
| Model | G31325/G31490/G31525/G31610 |
|---|---|
| Processing area | 1300X2500mm, 1400X900mm, 1500X2500, 1600X1000mm |
| Laser power | 180W, 200W ,250W,300W, 350W |
| Cutting speed | 0-18000mm/min |
| Engraving speed | 0-64000mm/min |
| Resetting positioning accuracy | 0.01mm. |
| Graphic format | AI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD |
| Supported software | Coreldraw, Photoshop, AutoCAD |
| The smallest cutting characters | Character: 2.0*2.0mm English:1.0*1.0mm |
| Application material | acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles, ABS double color sheet. Stainless steel, carbon steel. |
