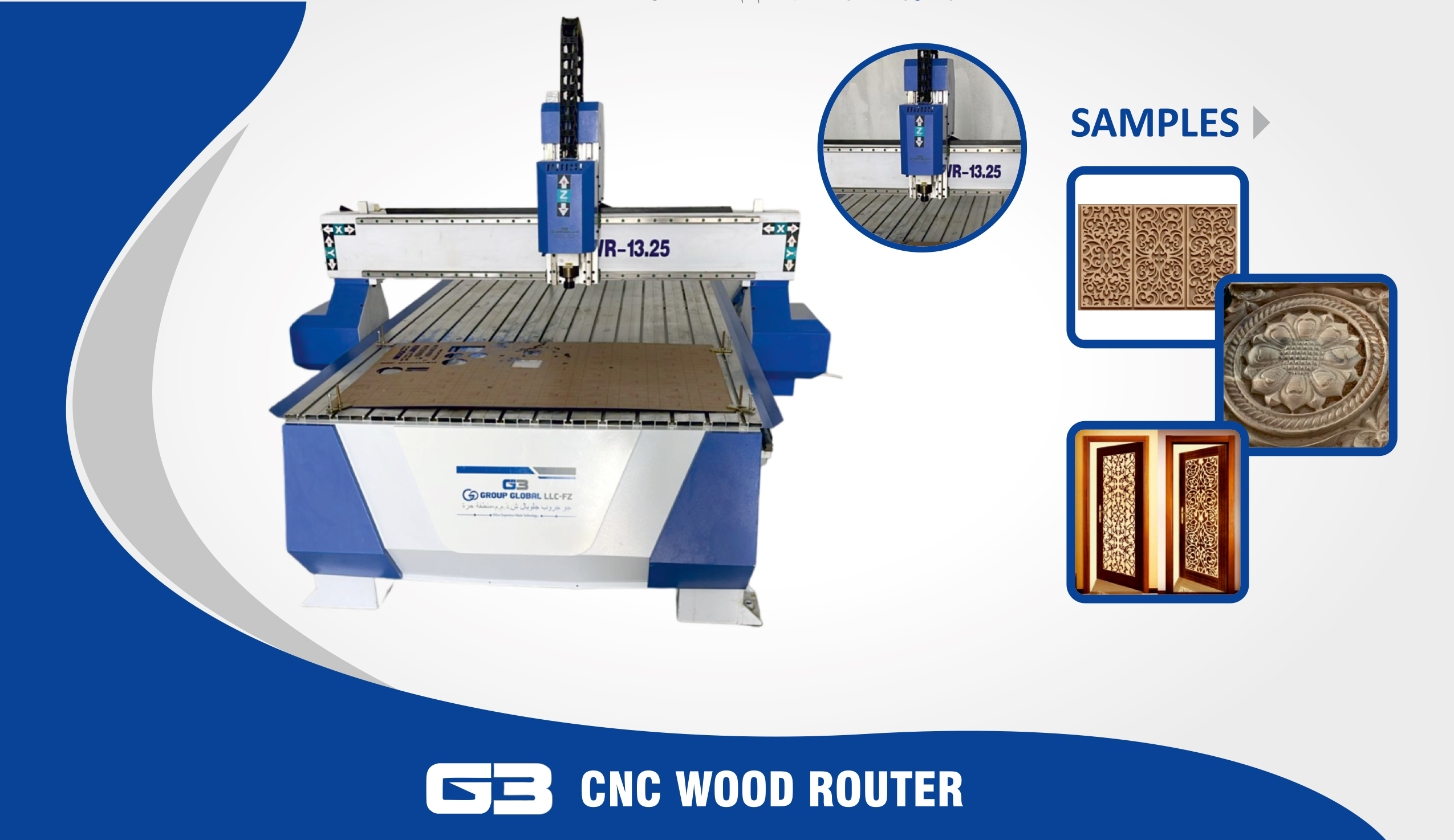

CNC WOOD ROUTER
Technical Parameters of CNC Wood Working Machines
| Model | G3 CNC WR 1325 (Servo) | G3 CNC WR 1530 (Stepper) |
| Working Size | 1300*2500*200 | 1500*3000*400 |
| spindle | 3kw/6kw Air cooling | 3KW/ 6KW Air colling |
| Oiling system | Auto | Auto |
| VED (Inverter) | 4kw/7kw | 4kw/7kw |
| Max speed | 15000mm/s | G3FM-20/30/50w |
| Transmission | Rack Rail | Rack Rail |
| Driving Motor | Servo motor | Stepper motor |
| Guide Rail | LM Guide Rail | LM Guide Rail |
| Table Surface | Aluminum T-slot | Aluminum T-slot |
| Working Voltage | AC 220V ,50Hz/ AC380V,50Hz | AC 220V ,50Hz/ AC380V,50Hz |
| Command Language | G Code | G Code |
| Operating System | Rich auto A11 control system | Rich auto A11 control system |
| Interface | USB | USB |
| Software Compatibility | Artcam , solid work etc | Artcam , solid work etc |
