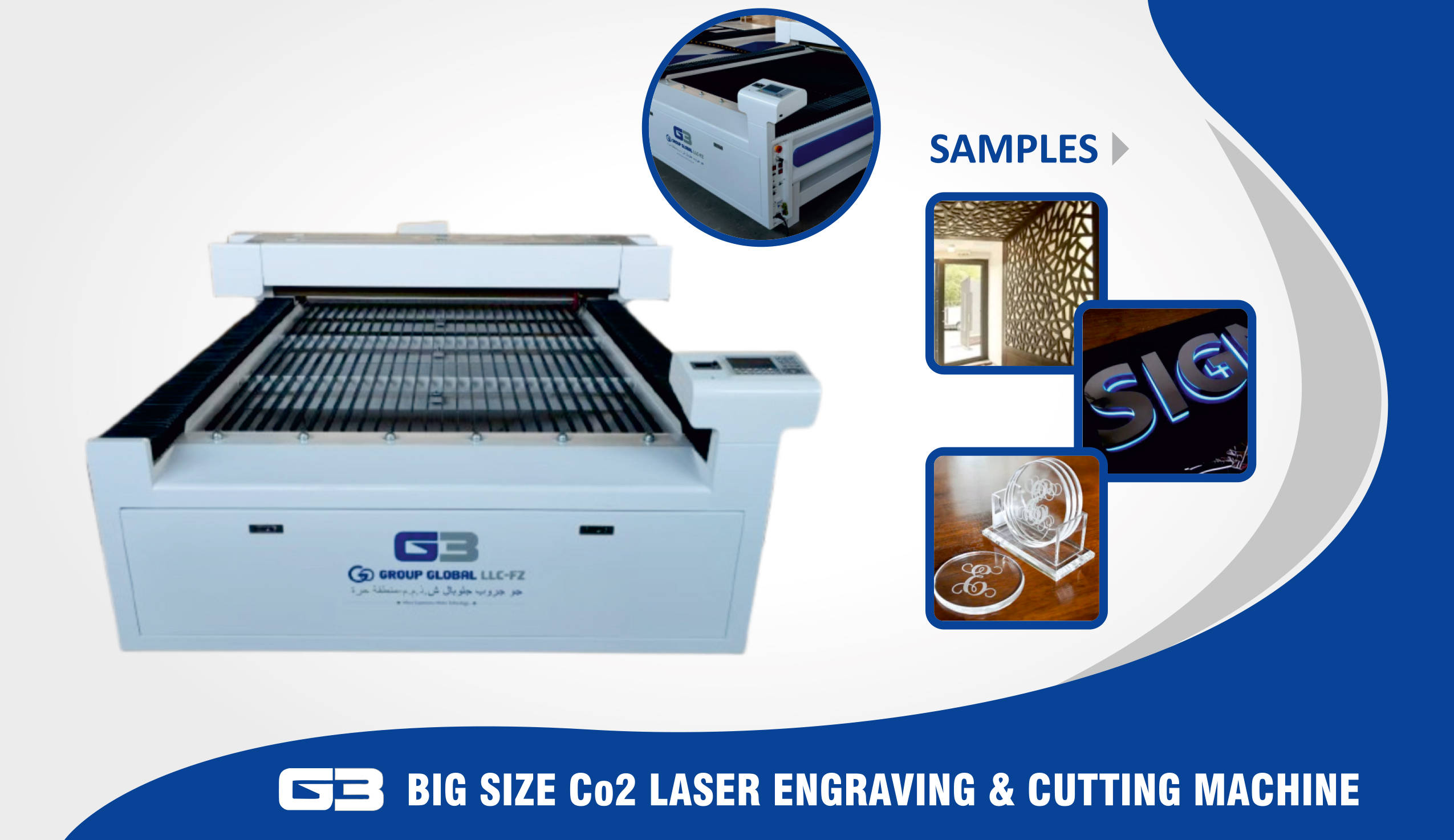

BIG SIZE Co2 LASER ENGRAVING & CUTTING MACHINE

Application of industry
Advertisement, arts and crafts, leather, toys, garments, model, building upholstery, computerized embroidery and clipping, packaging and paper industry
Applicable Materials
Acrylic, wood, bamboo, MDF, cloth, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials.
Machine Feature
- With oblique rack and belt suit for any materials.
- Imported Linear rail guide with high durability, stability, precision.
- Openness of the platform to facilitate the processing of materials available.
- Strong steel structure machine body makes sure working stable and low noise Gear rack transmission with high precision.
- DSP offline control system with USB interface. Software support windows XP, windows 7/8/10,
- compatible with art cut, CoreIDRAW, Photoshop, Auto CAD etc.
- Automatic Lubricating device and auto smoking absorption system, convenient for machine maintenance.
Technical-parameters
Product model | G3-1325 / G3-1525 / G3-1625 / G3-1825 / G3-1630 |
Working area(mm) | 1300x2500 / 1500x2500 / 1600x2500 / 1800x2500 / 1600x3000 |
Standard Laser power | 80W/100W/130W/150W180W |
Laser type | CO2 sealed laser tube, water cooling Co2 |
Engraving speed | 0-1000mm/s |
Cutting speed | 0-600mm/s |
Resetting positioning accuracy | <0.01mm |
Maximum forming character | Figure/English: 1x 1mm: 1.5*1.5mm |
Power supply | 220V110% 50Hz or 60Hz |
Software supported | Art Cut, Photoshop (Conversion output) CorelDRAW, AutoCAD (Direct output) |
Main Graphic format supported | PLT/DXF/DST/BMP/AI etc. (Direct output) |
Running Environment | 0-45°: 5%-95% Temperature: 0-45°, Humidity: 5%-95% |
Warranty | One year, except consumable parts |
Support | by calling, video, email or training |
