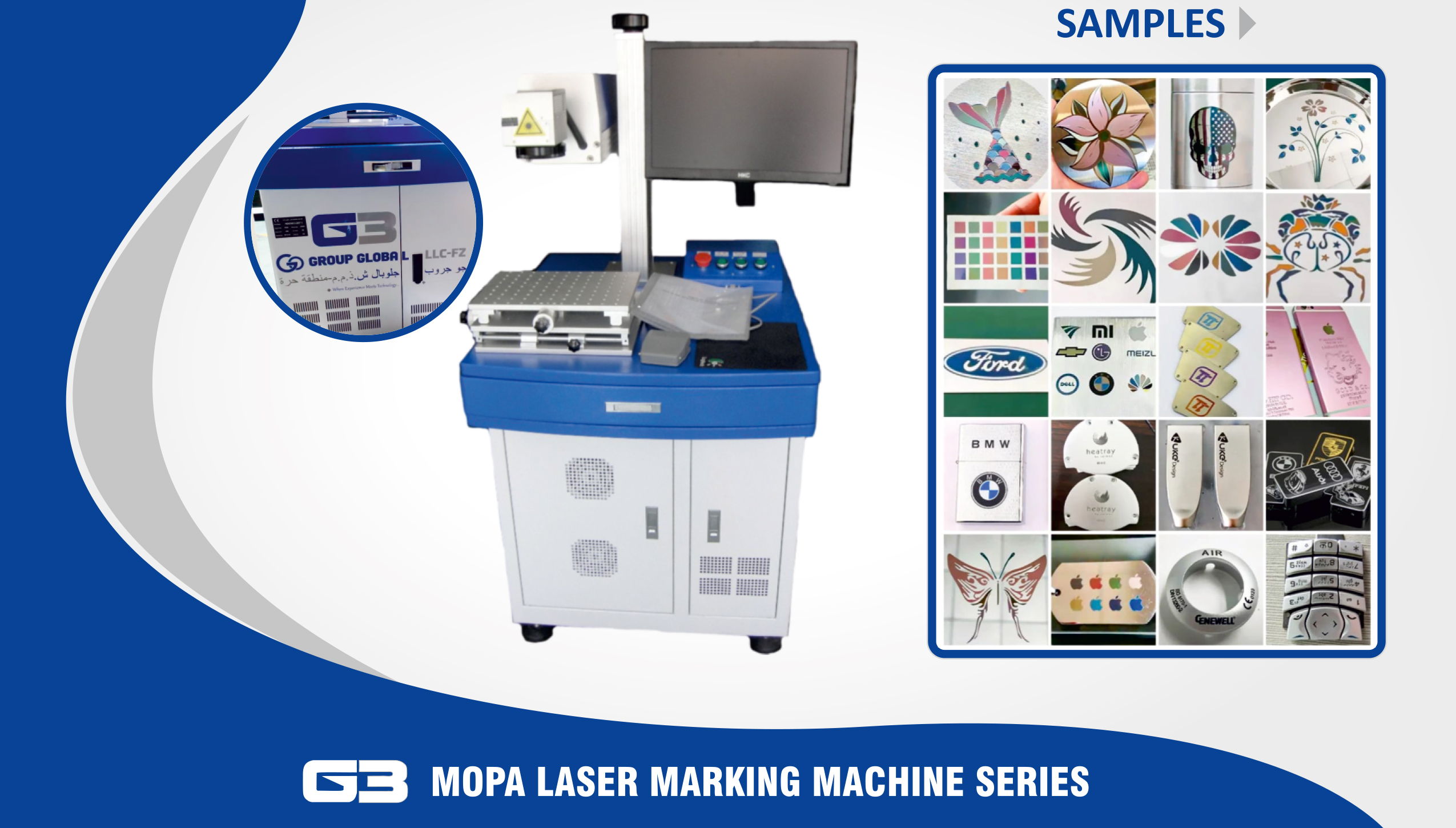

MOPA LASER MARKING MACHINE SERIES
Application of Industry
Can mark on metal and various of non-metal surface;especially meet the requirement of high precision.widely used in electrical components, hardware, tools, integrated circuits (IC), electric appliance,communication equipment, precise machinery, glass frames,clocks and watches, jewelry and decorations, auto parts,plastic buttons, building material, PVC pipes and medical instrument industry.
Applicable Materials
Metals and alloys, metal oxides, a special surface treatment, ABS material, printing ink, epoxy resin, plastic, ceramic etc.
Machine Feature
- Power consumption is very low, only 0.8kw/h.
- Inside air cooling system to low the power consumption, 10000 hours maintenance free.
- The transfer efficiency is very high, free maintenance, high stability,and easy operating.
- USB interface, it can accept lots of format files
Technical-Parameters
| Printing parameters | G3FM-20/30/50w |
| Laser wavelength | 1064nm |
| Beam quality | <1.2 |
| Power | 20W/30W/50W |
| Frequency scope | 20kHz-80kHz |
| Max speed | 15000mm/s |
| Max resolution | 0.001mm |
| Repetion precision | 0.003mm |
| Marking scope | 150x150mm, 200x200mm |
| Min line width | 0.01mm |
| Min character size | 0.2mm |
| Supply voltage | 110V/60HZ,220V/50HZ |
| Refrigeration mode | Air cooling |
| Total power | <800W |
| Working environment | 10-35°C, humidity 90% |
| Dimension | 930x1100x1270mm |
| Net weight | 150 kg |
