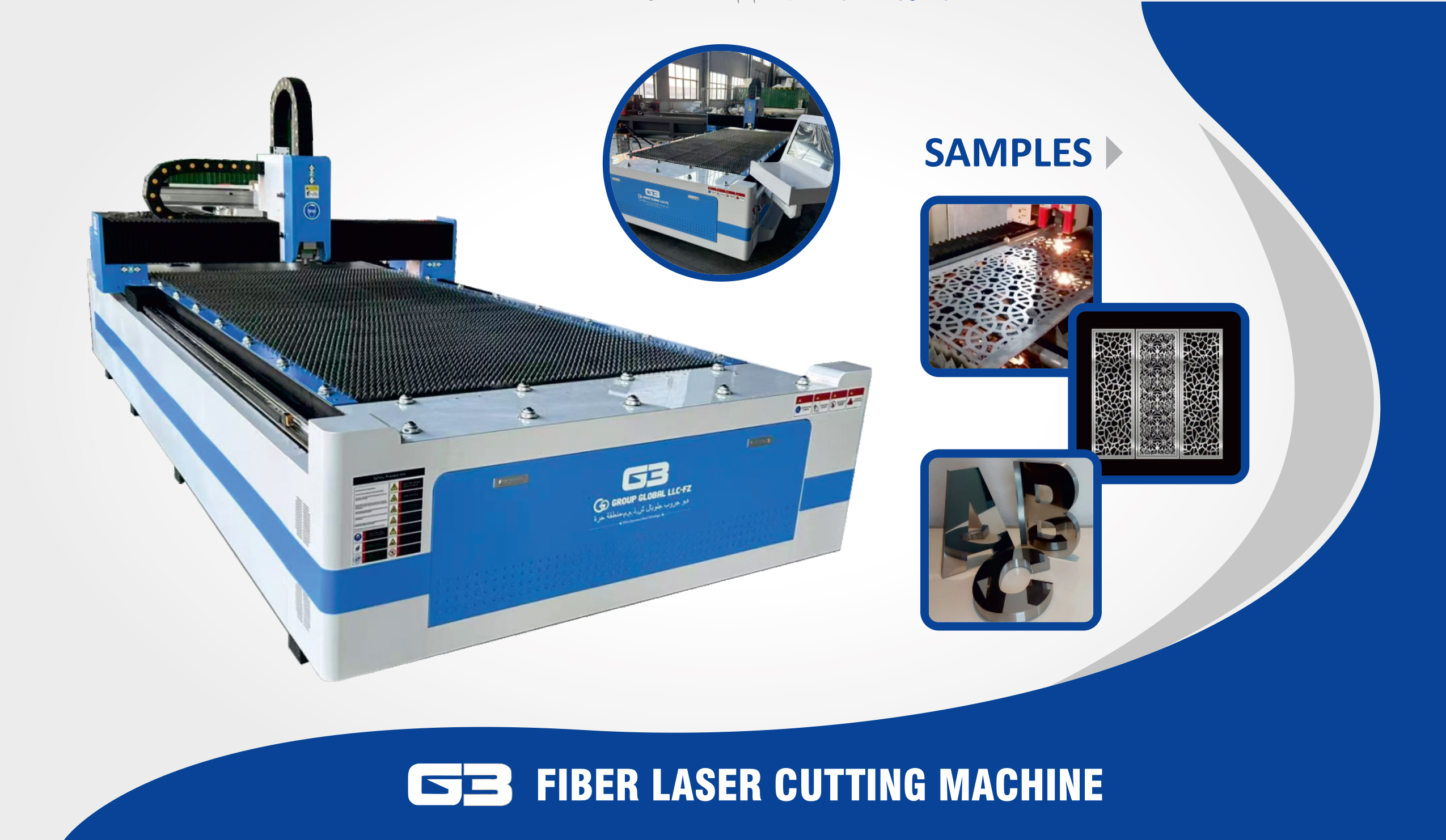

Fiber Laser Cutting Machine
Application of industry
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries
Applicable Materials
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials
Technical-parameters
| Product model | G3-1325F | G3-1530F |
| Processing area | 2500x1300mm | 3000x1500mm |
| Laser power | 300W/500W | 1000W/1500W/2000W/3000W |
| XYZ axis range | 2500mm/1300mm/100mm | 3000mm/1500mm/100mm |
| Thickness | 0-6mm | 0-10mm |
| X/Y axis positioning accuracy | +0.03mm | +0.03mm |
| X/Y axis repeated positioning accuracy | +0.02mm | +0.02mm |
| Working speed | 50m/min | 80m/min |
| Max acceleration | 0.3G | 0.5G |
| Graphic support | Al, BMP, PLT, DXF, DST | Al, BMP, PLT, DXF, DST |
| Workbench maximum load | 200kg | 500kg |
| Transmission mode | Imported TBI rolling ball screw | Precise pinion and rack, dua drive transmitting |
| Temperature | o°c-40°C | o°c-40°C |
| Total weight | 1500kg | 4000kg |
| Machine dimensions | 3800*1850*1300mm | 4800*2600*1750mm |
