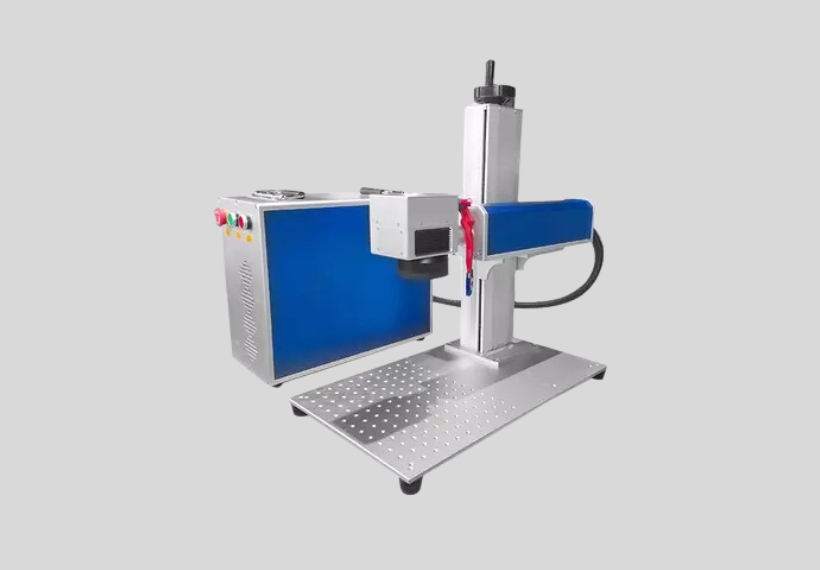

G3 10W 20W 30W Portable Fiber Laser Marking Machine
Engraving Area:110*110mm or 175*175mm Power: 10W 20W 30W Color: brown Applicable materials:metals and alloys, metal oxides, ABS material, plastic, ceramic etc.
Advantages:
1. Raycus laser source.
2. Full aluminum structure, small size and light weight.
3. Taiwan MEANWELL power supply.
4. Shenzhen Galvo-Tech Galvanometer.
5. Rotary, movable worktable is choosable.
6. Use with an industrial PC.
7. 110*110mm, 150*150mm, 175*175mm, 200*200mm
8. Air cooling.
9. English interface.
9. Applications: marking on metal and nonmetal surface.
- Model: G3-10W
- Brand: G3
- Code: G3-10W
Technical Parameters:
Model | G3-10W |
---|---|
Wavelength | 1064nm |
Laser power | 10W/20W/30W/50W |
Marking Area | 75*75mm,110*110mm,150*150mm,175*175mm,200*200mm |
Power Voltage | 220V 50Hz (Customizable) |
Gross Power | <800W |
Dimension | Appr. 930*1100*1270mm |
Weight | Appr. 40kg |
