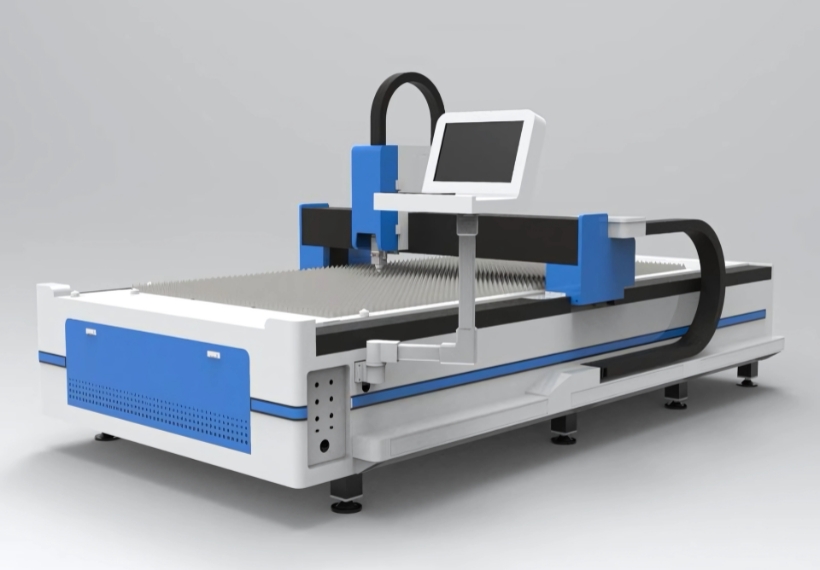

G3 Series Fiber Laser Cutting Machine
Processing area: 2500X1300mm Power: 1000W, 1500W,2000W, 3000W, 6000W Color: Blue-White Applicable Materials: Metal plates, pipes, stainless steel, carbon steel, galvanized sheet,brass,aluminum,steel,various alloy plate,rare metal and other materials
Advantages:
1. Raycus laser source, IPG is choosable.
2. Taiwan AIRTac pneumatics.
3. Worthing or Au3Tech laser nozzle.
4. HIWIN linear guideway.
5. Motovario reducer.
6. Schneider electrics.
7. YASKAWA servo (X,Y), Panasonic (Z).
8. Cypcut controller.
9. Applications: brass, copper, steel, aluminum cutting from 3mm~6mm or thicker.
- Model: G3-1325/F-GS-1530
- Brand: G3
- Code: G3-1325/G3-1530
Technical Parameters:
| Model | G3-1325/F-GS-1530 |
|---|---|
| Wavelength | 1064nm |
| Laser power | 1000W, 1500W,2000W, 3000W,6000W |
| Power Voltage | 380V 60Hz |
| Gross Power | On different products |
| Dimension | Appr. 4.15m*2.4m*1.7m |
| Weight | Appr. 2000kg (On different products) |
