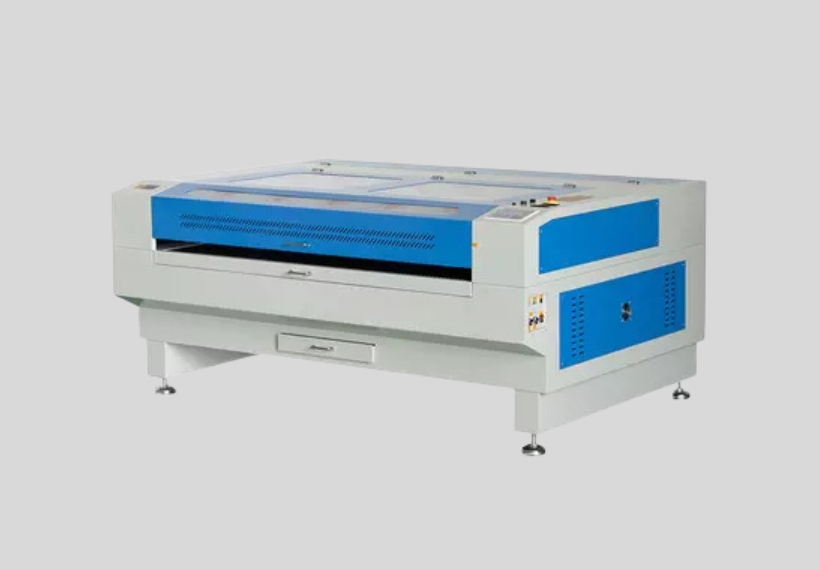

G3- 1610 Laser Engraving&Cutting Machine
Processing area: 1000mm*600mm Powers: 80W 100W 120W Color: Blue-white or grey-white Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles,bamboo, shellfish, ABS sheet.
Advantages::
1. RUIDA RDC6442 main board.
2.Blue-white color.
3. Taiwan CSK linear guideway.
4. Shenzhen Leadshine driver and motor.
5. Beidi synchronous belt.
6. RDWorks software.
7. Double worktable: Honeycomb and aluminum rod.
8. Hailea ACO-009D air pump.
7. Standard wooden case packaging.
- Model: G3- 1610
- Brand: G3
- Code: G3- 1610
Technical Parameters:
| Model | G3- 1610 |
|---|---|
| Processing Area | 1600*1000mm |
| Laser power | 100W, 120W ,150W, 180W |
| Cutting speed | 0-10000mm/min |
| Engraving speed | 0-64000mm/min |
| Repeatability | 0.01mm. |
| Graphic format | AI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD |
| Supported software | Coreldraw, Photoshop, AutoCAD |
| The smallest cutting characters | Character: 2.0*2.0mm English:1.0*1.0mm |
| Operating temperature | 0-45°C. |
| Windows System | RDWorks V8.0 Windows: Win7 WinXP |
