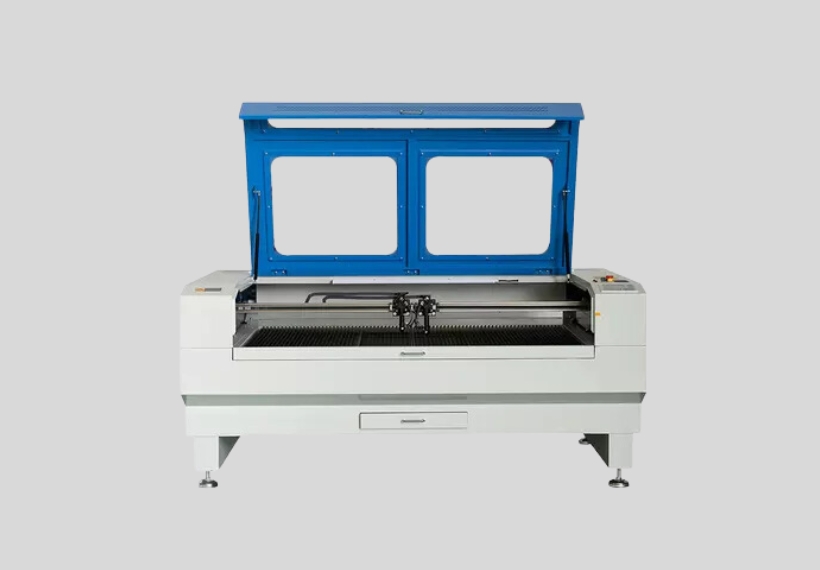

G3-1610 CO2 Laser Cutting Machine

Processing Area: 1600mm*1000mm Power: 100W/120W/150W/180W Color: Blue White Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles,bamboo, shellfish, ABS sheet.

Advantages::

1. 64DSP high-speed processor.

2. Windows USB / U disk port supported.

3. Larger offline storage.

4. Simple regulation of laser power.

5. Exquisite circuit design.

6. True color screen and AWC708C latest control system. RUIDA is also available.

7. Laser tube is produced by our own factory.

  • Model: G3-1610
  • Brand: G3
  • Code: G3-1610

Technical Parameters:

ModelG3-1610
Processing Area1600*1000mm
Laser power100W,120W, 150W, 180W
Cutting speed0-10000mm/min
Engraving speed0-64000mm/min
Repeatability0.01mm.
Graphic formatAI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD
Supported softwareCoreldraw, Photoshop, AutoCAD
The smallest cutting charactersCharacter: 2.0*2.0mm English:1.0*1.0mm
Operating temperature0-45°C.
