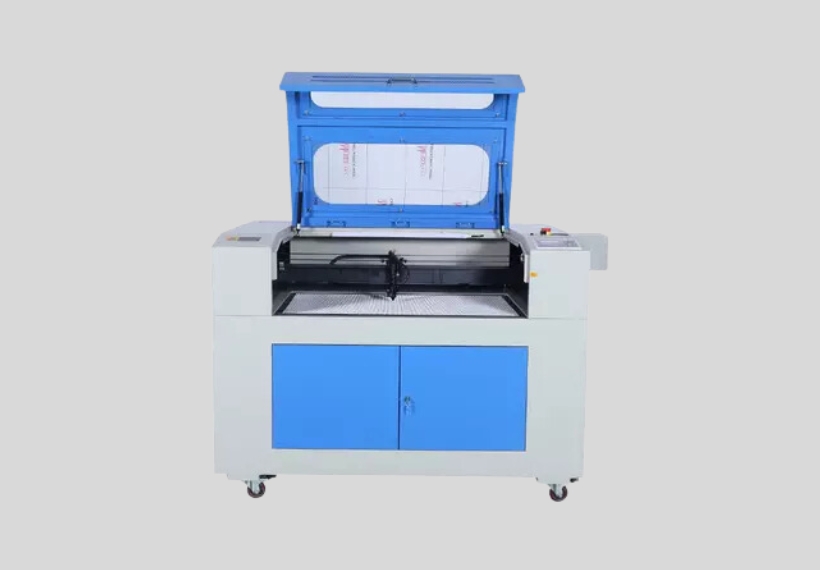

G3-9060 60W 80W CO2 Laser Engraving Machine
Processing Area: 900mm*600mm Power: 60W/80W/100W Color: Blue-white Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles,bamboo, shellfish, ABS sheet.
Advantages::
1. 64DSP high-speed processor.
2. Windows USB / U disk port supported.
3. Larger offline storage.
4. Simple regulation of laser power.
5. Exquisite circuit design.
6. True color screen and AWC708C latest control system. RUIDA is also available.
7. Laser tube is produced by our own factory.
- Model: G3-9060
- Brand: G3
- Code: G3-9060
Technical Parameters:
| Model | G3-9060 |
|---|---|
| Processing Area | 900*600mm |
| Laser power | 60W, 80W, 100W |
| Cutting speed | 0-10000mm/min |
| Engraving speed | 0-64000mm/min |
| Repeatability | 0.01mm. |
| Graphic format | AI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD |
| Supported software | Coreldraw, Photoshop, AutoCAD |
| The smallest cutting characters | Character: 2.0*2.0mm English:1.0*1.0mm |
| Operating temperature | 0-45°C. |
