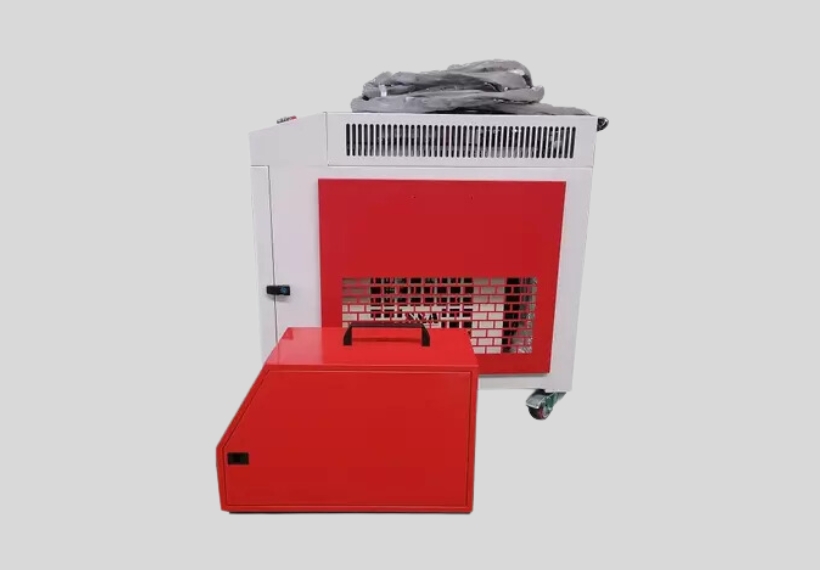

G3 Hand Held Fiber Laser Welding / Cleaning / Cutting 3 in 1
The cleaning can automatically focus, fit the curved surface for cleaning, and have the advantages of high cleaning surface cleanliness. It can remove resin, oil, stains, dirt, rust, coating, plating, and paint on the surface of objects.
Machine advantages:
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hot
Application Materials:
1. The welds are smooth and beautiful, without pores, and do not require polishing or require little polishing work.
2. The operation is simple and easy to learn, no professional welder is required.
3. The cleaning can automatically focus, fit the curved surface for cleaning, and have the advantages of high cleaning surface cleanliness. It can remove resin, oil, stains, dirt, rust, coating, plating, and paint on the surface of objects.
4. The laser power is high, the weld depth ratio is high, the heat-affected area is small, the deformation is small, and the welding speed is fast.
5. For difficult-to-weld materials such as aluminum alloys, the swing welding head can be used to weld easily.
6. The optical fiber is 10 meters long and can be used to weld large workpieces over long distances.
7. Welding can realize spot welding, butt welding, stack welding, and precision welding on thin-walled materials and precision parts.
Welding parameter table:
| Materia | Protective gas | thickness(mm) | thicknes(mm) | thickness(mm) |
|---|---|---|---|---|
| Model | 1000w | 1500w | 2000w | |
| Aluminum plate | N2 | 0.5-2 | 0.5-2.5 | 0.5-3 |
| Stainless stee | Ar | N2 | 0.5-2.5 | 0.5-3 | 0.5-4 |
| Carbon steel | CO2 | 0.5-2.5 | 0.5-3 | 0.5-4 |
| Galvanized sheet | Ar | 0.5-2.5 | 0.5-3 | 0.5-4 |
Main parameters of equipment:
| Serial number | product name | specification |
|---|---|---|
| 1 | Handheld fiber laser welding machine | 1500w/2000W/3000W |
| 2 | Laser power | 1500w |
| 3 | Fiber length | 10m |
| 4 | Laser wavelength | 1064 |
| 5 | Water Chiller | Dual temperature dual control constant temperature |
| 6 | ambient temperature | 15-35 |
| 7 | environment humidity | ＜70% No condensation |
| 8 | Way of working | Continuously adjustable |
| 9 | Operating Voltage | AC220±5% |
| 10 | Laser core diameter | 25、35 |
| 11 | collimation focal length | 50 |
| 12 | focus focal length | 150 |
| 13 | Collimation focus range | 0-15 |
| 14 | Effective clear aperture | 20 |
| 15 | Spot diameter | 0-5 |
| 16 | Gun tip weight | 0.85 |
| 17 | Welding speed | 0-120 |
| 18 | Welding thicknes | 0.5-3 |
| 19 | Weld requirements | ≤0.5 |
