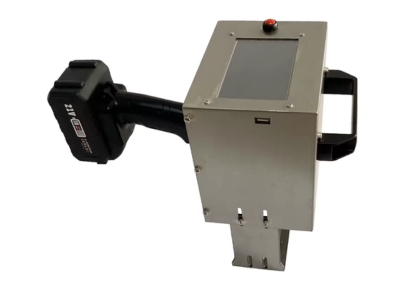

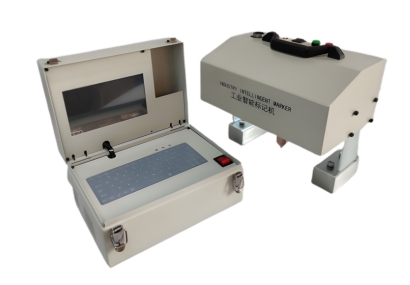

Handheld Dot Pin Marking Machine with Battery
The Handheld Dot Pin Marking Machine with Battery is a versatile and portable marking solution designed for high-precision applications. Available in models XY/SD-4-9030 and XY/SD-4-12040, it offers standard working areas of 90×30mm and 120×40mm, with a marking depth ranging from 0.01mm to 1.5mm depending on the material. Lightweight at just 5.8kg and powered by a lithium battery, it is highly portable. This marking machine is equipped with an advanced man-machine interface using an embedded ARM9 industrial control platform and a 7-inch true color touch screen. The dual-bit ARM+STM32 drive control card ensures smooth and accurate movements, and the fully digital stepper motor driver delivers quiet, stable performance with minimal vibration. Transmission mechanism and guide rails from Taiwan Jingwei provide high precision and low operating noise. The hard metal print pin with HRC 92 hardness ensures clear and durable markings on a variety of materials. Software is available in English and Chinese versions, operating temperature is -5°C to 40°C and power consumption is ≤250W.
- Models
- XY/SD-4-9030 and XY/SD-4-12040
- Control
- Embedded ARM9 platform with 7-inch true colour touch screen
- Portability
- 5.8kg, lithium battery powered for mobile coding on site
Technical parameters
- Standard working area
- 90 × 30mm / 120 × 40mm
- Marking depth
- 0.01 – 1.5mm (material dependent)
- Repeat accuracy
- 0.01mm
- Pin hardness
- HRC 92
- Weight
- 5.8kg
- Power
- ≤250W, lithium battery
- Working temperature
- -5°C – 40°C
- Software
- English and Chinese versions
Configuration & components
- Drive control card
- Dual-bit ARM + STM32
- Motor driver
- Fully digital stepper driver, low noise and vibration
- Guide rails
- Taiwan Jingwei transmission mechanism and guide rails
See it running in Sharjah.
Book a live demo of the Handheld Dot Pin Marking Machine with Battery at our warehouse & demo center, or talk to an engineer about your material.
