CO₂ Cutting

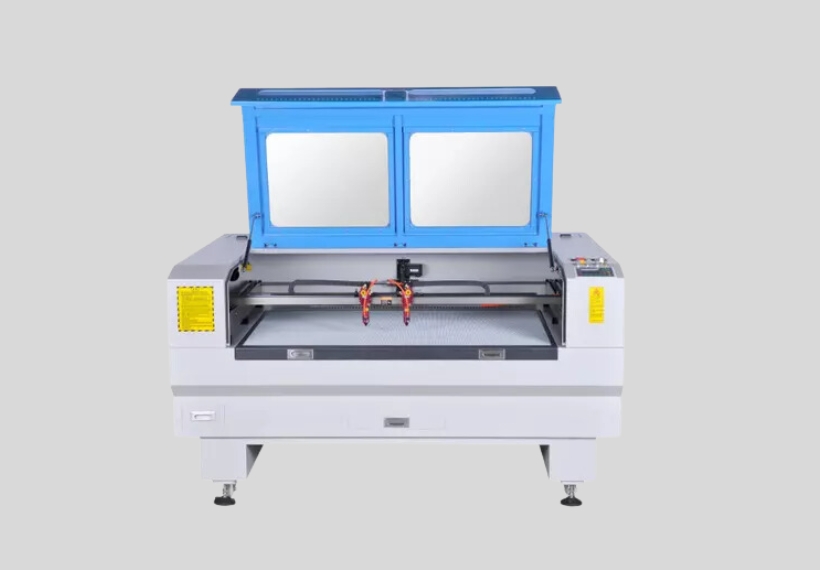

G3-1290 Double Heads CO₂ Laser Engraving and Cutting Machine
Processing Area: 1200*900mm Power: 80W/100W/120W Color: Blue-White Applicable materials: acrylic sheet, wood, paper, leather, cloth, plastic, rubber, resin, ceramic tiles,bamboo, shellfish, ABS sheet.
- Advantages
- 1. 64DSP high-speed processor.
Technical parameters
- Model
- G31290D
- Processing Area
- 1200*900mm
- Laser power
- 80W, 100W ,120W,150W
- Cutting speed
- 0-10000mm/min
- Engraving speed
- 0-64000mm/min
- Repeatability
- 0.01mm.
- Graphic format
- AI,CDR,BMP, JPG, DST, PLT, DXF, DWG, TIFF, PSD
- Supported software
- Coreldraw, Photoshop, AutoCAD
- The smallest cutting characters
- Character: 2.0*2.0mm English:1.0*1.0mm
- Operating temperature
- 0-45°C.
- Application material
- fabric, acrylic, wood, paper, leather, cloth, plastic, rubber, resin, bamboo, ABS sheet, PVC etc
See it running in Sharjah.
Book a live demo of the G3-1290 Double Heads CO₂ Laser Engraving and Cutting Machine at our warehouse & demo center, or talk to an engineer about your material.
